Simco-Ion orION Ionizing Air Nozzle
Simco-Ion orION™ Air Ionizing Nozzle is a compressed-air ionization system designed for fixed, point-of-use applications where controlled delivery of ionized air is required. It is widely used in manufacturing and assembly processes to neutralize electrostatic charge on parts and particles, enabling more effective cleaning, improved handling, and reliable ESD control.

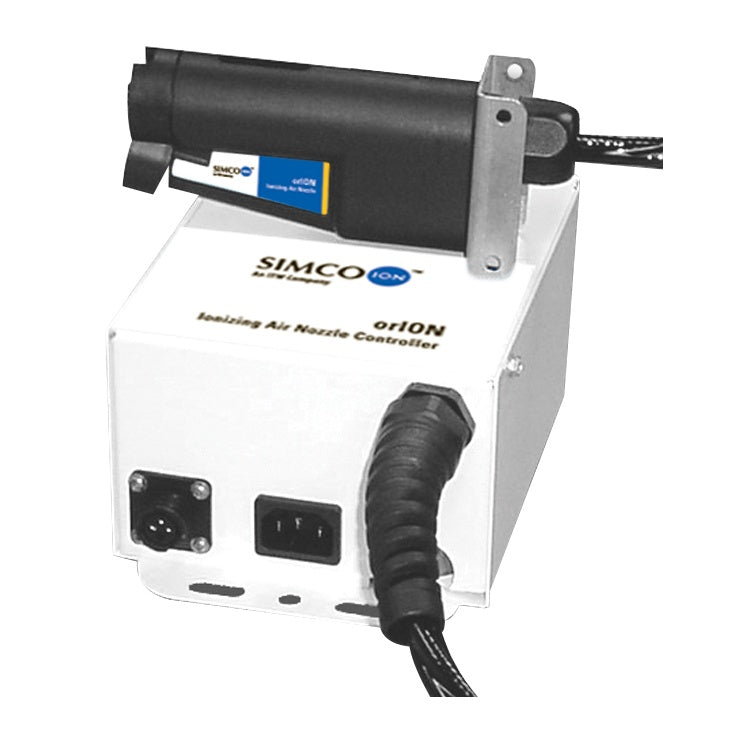

A defining feature of the orION™ system is its remote operation architecture. The ionizing nozzle is paired with a separate control module. The control module can be triggered by a foot switch, optical sensor, or by customer equipment. This flexibility allows the orION™ system to support everything from simple manual workstations to advanced automated processes where ionized air delivery is synchronized with machine operation or part presence. This design is a key reason orION™ is selected for production environments, as it supports hands-free operation, and straightforward integration into automated or semi-automated equipment.

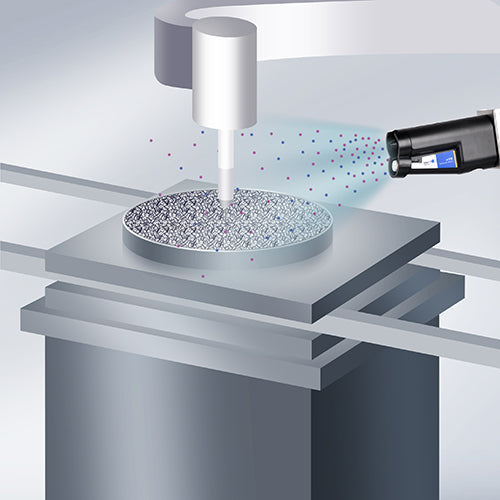

In cleaning applications, neutralizing static charge on both parts and particles allows debris to be removed more efficiently. Static-neutral conditions reduce the forces that cause particles to cling to surfaces, resulting in better cleaning results, improved consistency, and reduced effort compared to non-ionized air. While cleaning is the most common application, the orION™ nozzle is also used wherever controlled ionized airflow supports process stability and product quality.
- Compressed-air ionizing nozzle for fixed, point-of-use applications
- Remote control module supporting hands-free and automated operation
- Improves cleaning efficiency by neutralizing static on parts and particles
- Triggered via foot switch, optical sensor, or customer equipment
| Specification | Value |
|---|---|
| Input Voltage | 120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A |
| Discharge | <2 sec @ 6" (15.2 cm), 30 psi (±1000-100V) |
| <1 sec @ 2" (5.08 cm), 60 psi (±1000-100V) | |
| Balance | 0V ±15V |
| Cleanroom Class | ISO 14644-1 Class 5 |
| Air Supply | Input: Clean Dry Air, Nitrogen, or CO2 |
| Pressure: 100 psi (7 bar) max; pressure relief in nozzle complies with OSHA requirements | |
| Flow: 2.4 scfm @ 30 psi (2 bar); 4.6 scfm @ 60 psi (4 bar); 7.4 scfm @ 100 psi (7 bar) | |
| Connection: 1/4" NPT (female) | |
| Filter: 0.01-micron rating | |
| Audible Noise | 76 dB @ 30 psi (2 bar); 89 dB @ 60 psi (4 bar); 97 dB @ 100 psi (7 bar); measured 24" (61.0 cm) from nozzle |
| Connector | 4 position, keyed circular |
| Ozone | <0.5 ppm measured @ 12" (30.5 cm) |
| Operating Env | 32-104°F (0-40°C); 30-70% RH, non-condensing |

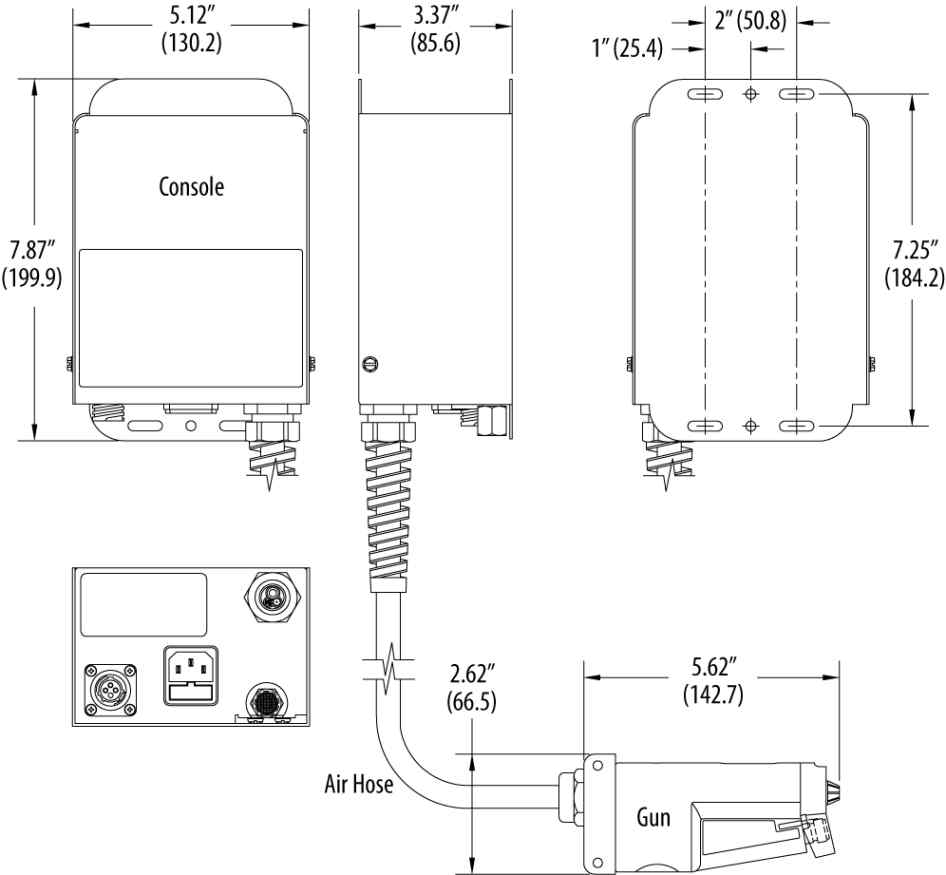

| Dimension | Nozzle: see dimensional drawing |
| Weight | Nozzle: 0.41 lb (0.185 kg) |
| Air Hose: 0.08 lb/ft (0.115 kg/m) | |
| Warranty | 2 year limited warranty |
| Control Module | Power: 120 VAC, 50/60 Hz, .10A; 230 VAC, 50/60 Hz, .05A |
| Pressure: Clean Dry Air (CDA) or Nitrogen; 1/4" NPT connector, female (100 psi/7 bar max) | |
| Enclosure: Powder-coated steel | |
| Dimensions: 7.87"H x 5.12"W x 3.37"D with flanges (19.9 x 13.0 x 8.56 cm) | |
| Weight: 6.0 lb (2.72 kg) | |
| Specifications, configurations, and product images are subject to change without notice. Refer to the manufacturer's documentation for current details. | |
| Option | Part Number |
|---|---|
| orION, 120V, 7' cable/hose assembly, 60 Hz, UL, cUL, North America | 4009045-01 |
| orION, 230V, 7' cable/hose assembly, 50 Hz, cUL, CE, Continental Europe | 4009046-01 |
| orION, 230V, 7' cable/hose assembly, 50 Hz, CE, United Kingdom | 4009220-01 |
| orION, 230V, 7' cable/hose assembly, 50 Hz, CE, China | 4015645-01 |
| orION, 120V, 5' cable/hose assembly, optical sensor, 60 Hz, UL, cUL, North America | 4012209-01 |
| orION, 230V, 5' cable/hose assembly, optical sensor, 50 Hz, cUL, CE, Continental Europe | 4012210-01 |
| orION, 230V, 5' cable/hose assembly, optical sensor, 50 Hz, CE, United Kingdom | 4012211-01 |

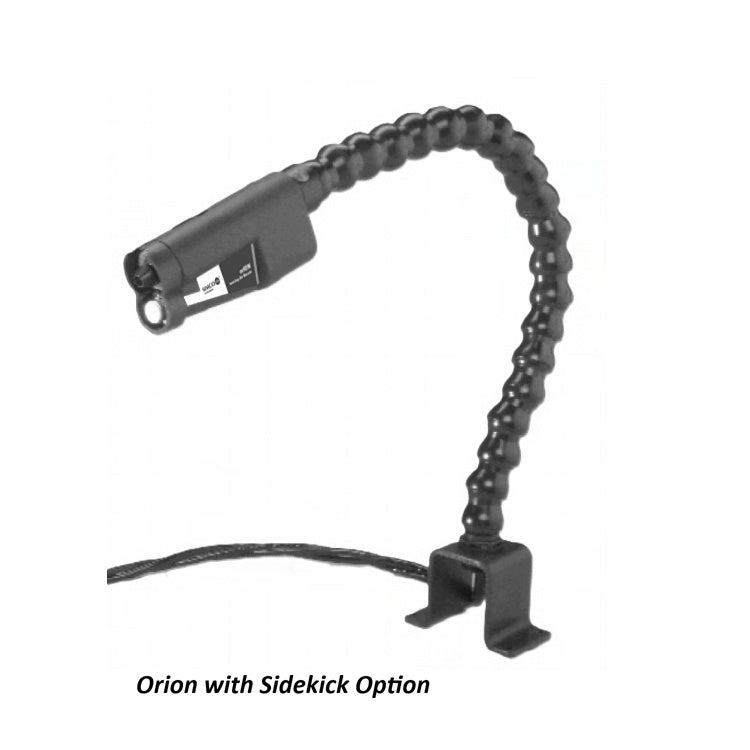

| orION, 120V, Sidekick (hands-free stand), 60 Hz, UL, cUL, North America | 4009245-01 |
| orION, 230V, Sidekick (hands-free stand), 50 Hz, cUL, CE, Continental Europe | 4009246-01 |
| orION, 230V, Sidekick (hands-free stand), 50 Hz, CE, United Kingdom | 4009449-01 |
| orION, 230V, 7' Sidekick (hands-free stand), 50 Hz, CE, China | 4015646-01 |
| orION, 120V, Sidekick (hands-free stand), optical sensor, 60 Hz, UL, cUL, North America | 4012212-01 |
| orION, 230V, Sidekick (hands-free stand), optical sensor, 50 Hz, cUL, CE, Continental Europe | 4012213-01 |
| orION, 230V, Sidekick (hands-free stand), optical sensor, 50 Hz, CE, United Kingdom | 4012214-01 |
| Filter Premium Replacement Kit (2 per pkg) | 5051416 |
| orION Foot Activation Switch | 4107399 |
