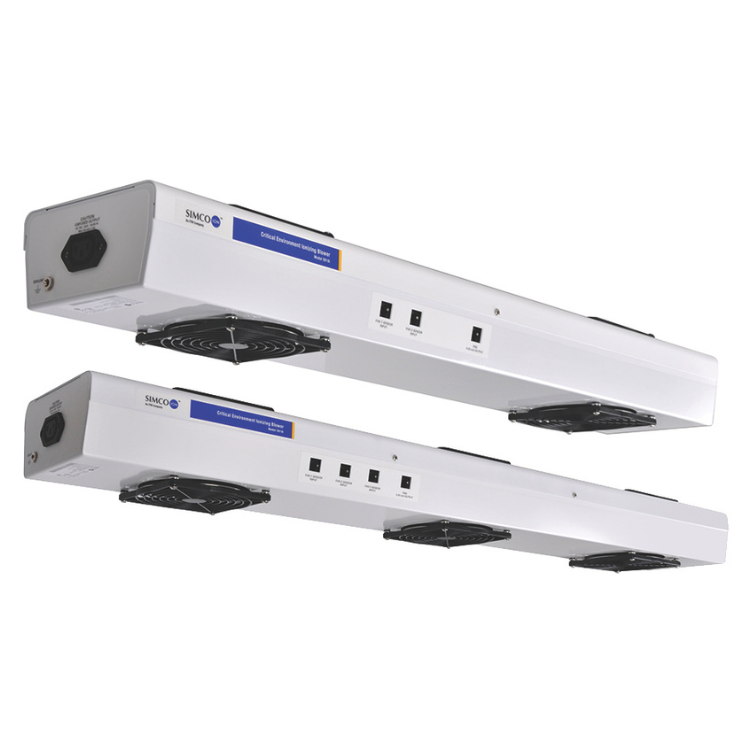

5810i Overhead Ionizing Blower
The Simco-Ion Model 5810i Critical Environment Overhead Blower is designed to provide industry-leading balanced ionization performance in cleanroom and other critical manufacturing environments. The Model 5810i is certified for use in ISO 14644-1 Class 4 cleanrooms and is engineered for applications requiring precise electrostatic charge control and high ion output.
The 5810i can operate with Novx System external sensors, allowing the blower to maintain precise balance better than ±1V by actively adjusting ion output in response to environmental changes. Using steady-state DC technology-the established method for mitigating the effects of electrostatic discharge (ESD) and ESD-induced electromagnetic interference (EMI)-the Model 5810i delivers maximum ion output where and when it is needed.
Compatibility with modern cleanroom operating conditions is ensured through the use of silicone-free air-bearing fans. Each fan is engineered for cleanliness and sealed from the rest of the chassis to meet stringent critical-environment requirements. Ionization systems that do not meet these standards risk introducing contamination and potentially reducing manufacturing yields.
Features
-
Balanced ionization performance of ±3V or better
(±1V when used with the Novx System) -
ISO 14644-1 Class 4 cleanliness rating
-
Silicone-free air-bearing fans designed for critical environments
-
Optional sensor input, alarms, and management control interfaces
-
Optional Auto Emitter Point Cleaning System
Benefits
-
Provides effective corona-based ESD protection to help maximize product yield
-
Designed for use in environments with controlled levels of contamination
-
Enables increased control with immediate alarm notification and prevention of unauthorized adjustments to power or fan speed
-
Automated emitter point cleaning helps reduce maintenance time and cost
Need advanced control options such as FMS connectivity or Novx closed-loop balance control?
Contact UsOur application engineers will review your requirements and confirm availability.
| Specification | Value |
|---|---|
| Input Voltage | 100-240 VAC (±10%), 50/60 Hz |
| Output Voltage | 100-240 VAC, 50/60 Hz unfused, 5 A max |
| Discharge | < 3 sec (±1000 V to ±100 V) at 18 in (45.7 cm), high speed |
| Balance | ±3 V (±1 V with Novx System external feedback) |
| Ionization Method | Steady-state DC |
| Emitter | Titanium emitters, 8 per fan |
| Cleanroom Classification | ISO 14644-1 Class 4 (Fed. Std. 209E Class 10) |
| Airflow | 108 CFM per fan (typical) |
| Audible Noise | Low speed ~52 dB, high speed ~61 dB (typical) |
| Operating Temperature | 50-90 °F (10-32 °C) |
| Operating Humidity | 30-70% RH, non-condensing |
| Ozone | ≤ 0.02 ppm |
| Daisy Chain Capability | Up to 10 units via IEC power outlet |
| Mounting | Eyebolts and S-hooks included; optional U-bracket or L-bracket |
| Dimensions | 2-fan: 32 in L x 6.1 in D x 3.8 in H; 3-fan: 40 in or 44 in L x 6.1 in D x 3.8 in H |
| Weight | 44 in model: approx. 10.3 lb (4.68 kg) |
| Warranty | Two-year limited warranty |
| Specifications, configurations, and product images are subject to change without notice. Refer to the manufacturer's documentation for current details. |
| Item | Part Number |
|---|---|
| Standard blower, fixed high fan speed, ±3 V balance (length dependent) | 91-5810i-CzzH |
| Standard blower, low/high fan speed control, ±3 V balance (length dependent) | 91-5810i-CzzX |
| Novx System blower, fixed high fan speed (length dependent) | 92-5810i-CzzH |
| Novx System blower, low/high fan speed control (length dependent) | 92-5810i-CzzX |
| Auto-Emitter Clean option suffix | E |
| Audible alarm option suffix | A |
| Lower balance limit to ±1 V (feedback option) | F |
| Daisy-chain power cord | 25-0720 |
| U-shaped mounting bracket (2 required per blower) | 32-6405 |
