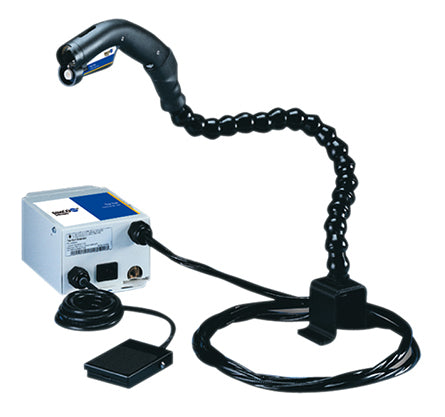

Simco-Ion Top Gun 3 with Sidekick
The Top Gun Sidekick is a hands-free ionizing blow-off cleaning system designed for fixed workstations and production environments. Combining high-velocity air with balanced ionization, it removes particles and debris while neutralizing electrostatic charge to prevent re-attraction during cleaning. The Sidekick configuration improves ergonomics and process consistency, with activation options including manual operation, foot switch, or optical sensor, allowing the system to adapt to a wide range of cleaning and assembly workflows in electronics, optics, medical device, and clean manufacturing applications.
Simco-Ion Technology Group's Top Gun 3 Ionizing Air Gun delivers high-performance ionizing blow-off for efficient cleaning and static neutralization. Balanced to 0 ± 15 V, the Top Gun provides high blow-off force with low air consumption, supporting effective particle removal and rapid static charge decay.
Key Features
-
Lightweight, ergonomic design for operator comfort
-
Flow control valve for adjustable airflow
-
Electrically balanced ion output
-
Integrated, replaceable filter-nozzle
-
Ionization indicator light
For automated or hands-free operation, the Top Gun with Optical Sensor automatically activates when a part enters the sensing range. The Top Gun Sidekick configuration enables fixed positioning during assembly and manufacturing processes, with optional foot pedal control for ionization and airflow. This helps reduce compressed air consumption while extending ionizer service life.
| Specification | |
|---|---|
| Configuration | Integrated Top Gun ionizing air gun with Sidekick hands-free stand and foot pedal switch or optical sensor (model dependent) |
| Input Voltage | 120 VAC, 60 Hz; 230 VAC, 50 Hz |
| Discharge Time | 1.3 sec @ 6 in (30 psi); 0.5 sec @ 2 in (60 psi), 1000-100 V |
| Balance | 0 ±15 V |
| Cleanroom Classification | ISO 14644-1 Class 5 |
| Blow-Off Force | 0.4 lb @ 100 psi (2 in target, 3 in from nozzle) |
| Air Supply | Clean dry air (CDA) or nitrogen, max 100 psi |
| Air Consumption | 2.4 SCFM @ 30 psi; 4.6 SCFM @ 60 psi; 7.4 SCFM @ 100 psi |
| Ozone | 0.001 ppm @ 15 psi (18 in from gun) |
| Activation | Foot pedal switch or optical sensor (model dependent) |
| Mounting | Bench-mounted Sidekick stand with adjustable orientation |
| Option | Part Number |
|---|---|
| Top Gun Sidekick, 120 V (NA) | 4006992-01 |
| Top Gun Sidekick, 230 V (CE-EU) | 4007005-01 |
| Top Gun Sidekick with Optical Sensor, 120 V (NA) | 4012199-01 |
| Top Gun Sidekick with Optical Sensor, 230 V (CE-EU) | 4012200-01 |
| Premium Filter Kit (2-pack) | 5051416 |
