Top Gun 3 Ionizing Air Gun

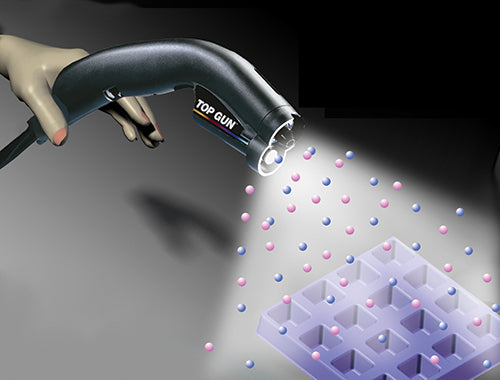

The Top Gun 3 ionizing air gun is designed for ionizing blow-off cleaning and particle removal at the point of use. By combining high-velocity air with balanced ionization, the Top Gun neutralizes electrostatic charge while removing dust, debris, and contaminants from parts and surfaces. This prevents particles from being re-attracted during cleaning and improves results in electronics, optics, medical device, and precision assembly applications where cleanliness and static control are critical.
Simco-Ion Top Gun 3
1/3
Data Sheet

Request Literature

Thank you! Your request has been submitted.
There was an error submitting your request. Please try again.
Specification Value
Input Voltage 120 VAC, 60 Hz, 0.2 A; 230 VAC, 50 Hz, 0.1 A
Discharge Time 1.3 sec @ 6 in (30 psi); 0.5 sec @ 2 in (60 psi), 1000-100 V
Balance 0 ±15 V
Cleanroom Classification ISO 14644-1 Class 5
Blow-Off Force 0.4 lb @ 100 psi (2 in target, 3 in from nozzle)
Air Supply Clean dry air (CDA) or nitrogen, max 100 psi
Air Consumption 2.4 SCFM @ 30 psi; 4.6 SCFM @ 60 psi; 7.4 SCFM @ 100 psi
Ozone 0.001 ppm @ 15 psi (18 in from gun)
Noise Level 76 dBA @ 30 psi; 89 dBA @ 60 psi; 97 dBA @ 100 psi
Weight Gun: 0.41 lb; Hose: 0.08 lb/ft

The Top Gun 3 ionizing air gun is used for ionizing blow-off cleaning and particle removal at the point of use. By combining high-velocity air with balanced ionization, it removes dust and debris while neutralizing electrostatic charge to prevent particles from being re-attracted to surfaces during cleaning.

Ionizing Blow-Off Cleaning & Particle Removal: Removes particles, fibers, and debris from parts and surfaces while neutralizing static charge, improving cleaning effectiveness and reducing recontamination caused by electrostatic attraction (ESA).

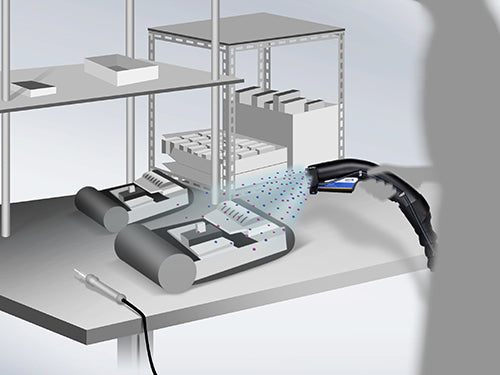

Electronics & PCB Assembly: Used to clean printed circuit boards, components, and assemblies during assembly, inspection, testing, and rework while minimizing ESD risk and static-related particle attraction.

Optics & Optical Components: Supports particle removal from lenses, glass, and optical assemblies where electrostatic attraction can cause cosmetic defects or yield loss.

Medical Device & Precision Assembly: Provides controlled blow-off cleaning of sensitive components and assemblies where cleanliness and static control are required during handling and inspection.

Laboratory & Clean Manufacturing Workstations: Delivers localized ionized air for cleaning tools, fixtures, and parts in clean manufacturing and laboratory environments without introducing static-related contamination.

Option Part Number
Top Gun 3, 7 ft Cable/Hose (120 V, NA) 4005105-01
Top Gun 3, 7 ft Cable/Hose (230 V, CE-EU) 4005106-01
Top Gun 3, 7 ft Cable/Hose (230 V, CE-UK) 4009894-01
Top Gun 3, 14 ft Cable/Hose (120 V, NA) 4006599-01
Top Gun 3, 14 ft Cable/Hose (230 V, CE-EU) 4006600-01
Top Gun 3, 14 ft Cable/Hose (230 V, CE-UK) 4009895-01
Top Gun 3 with Optical Sensor, 5 ft Cable (120 V, NA) 4012199-01
Top Gun 3 with Optical Sensor, 5 ft Cable (230 V, CE-EU) 4012200-01
Top Gun 3 Sidekick Hands-Free Stand (120 V, NA) 4006992-01
Top Gun 3 Sidekick Hands-Free Stand (230 V, CE-EU) 4007005-01
Premium Filter Kit (2-pack) 5051416
Specifications, configurations, and product images are subject to change without notice. Refer to the manufacturer’s documentation for current details.
