Simco-Ion fusION Ionizer

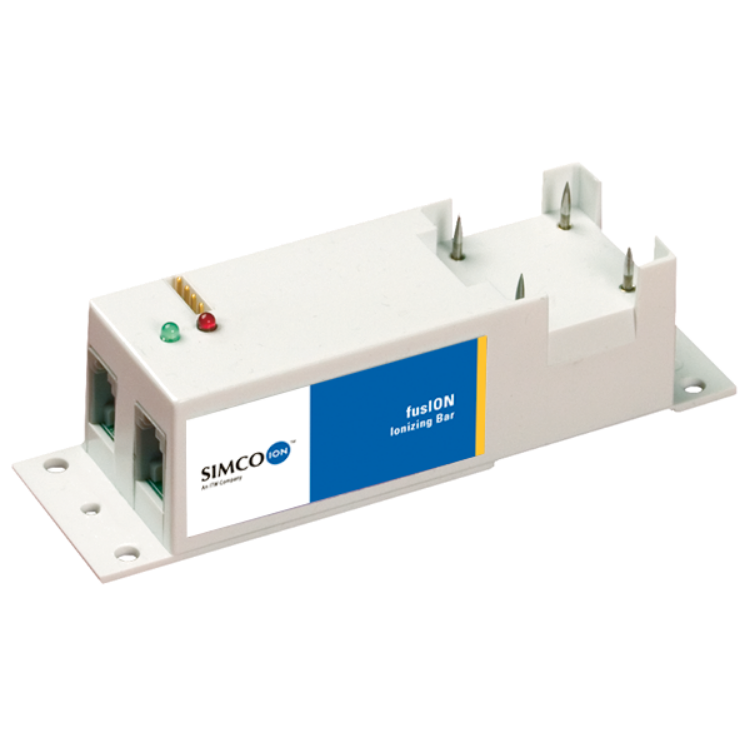

Simco-Ion, Technology Group’s fusION™ Local Area Ionizer is a compact, localized ionizer designed to control electrostatic charge inside process equipment and mini-environments. It is well suited for tight space constraints and low-clearance installations in industries such as semiconductor, flat panel display, pharmaceutical, and medical device manufacturing.
The fusION incorporates miniature power and control circuitry in a small package and uses Simco-Ion’s auto balancing technology, so no routine adjustments are required to maintain balance. It uses tungsten emitters and provides visual status indication with remote alarm output for system integration.
fusION operates on 24 VDC and can be powered directly from a process tool’s 24 VDC supply or by the Simco-Ion fusION power supply kit. Multiple units can be linked together from one 24 VDC power source (up to five units daisy-chained), supporting in-tool ionization coverage without adding multiple power supplies.

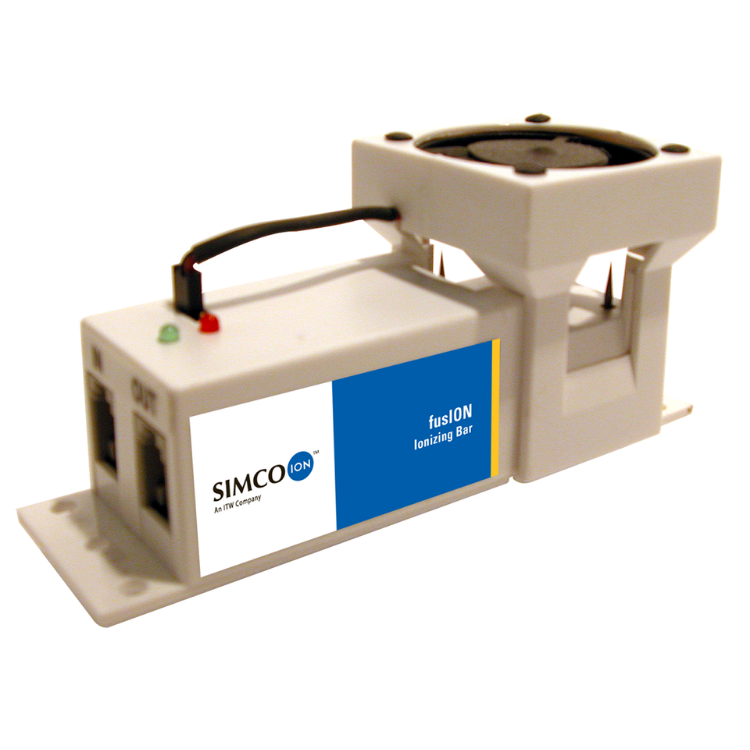

For applications that benefit from added airflow, an optional snap-on fan assembly clips to the fusION housing and draws power through a built-in connection.
- Compact localized ionizer for in-tool and mini-environment installation
- Auto balancing technology (no adjustments required to maintain balance)
- Tungsten emitters
- Visual ionizer status indication and remote alarm output
- 24 VDC operation; can be powered from a process tool or optional power supply kit
- Daisy-chain capability: up to five fusION ionizers from one 24 VDC source
- Optional snap-on fan assembly for applications that benefit from controlled airflow
| Specification | Value |
|---|---|
| Input Voltage | 24 VDC |
| Current Consumption | 200 mA max (without fan); 500 mA max (with fan) |
| Balance | 0 ±15 V |
| Discharge | <1.0 sec @ 12” (30.5 cm); 1000–100 V (with fan) |
| Ion Emission | Steady-state DC Technology |
| Emitter | Tungsten (W) |
| Cleanroom Class | ISO 14644-1 Class 4 |
| Indicators | Green POWER; Red FAULT |
| Alarm Output | Remote alarm output |
| Operating Environment | 50–95°F (10–35°C); 30–70% RH, non-condensing |
| Mounting | In-tool / equipment mounting |
| Dimensions | 4.0”L x 1.1”W x 0.8”H (10.2 x 2.8 x 2.0 cm) |
| Weight | 0.15 lb (0.07 kg) |
| Specifications, configurations, and product images are subject to change without notice. Refer to the manufacturer’s documentation for current details. |
| Option | Part Number |
|---|---|
| fusION compact air ionizer, tungsten (W) emitter points | 4010577 |
| fusION ionizer with air-assist, tungsten (W) emitter points | 4010831 |
| Inline fusION ionizer, tungsten (W) emitter points | 4012229 |
| Fan assembly | 4010447 |
| Power supply, North America / Japan | 4010448 |
| Power supply, Continental Europe | 4010449 |
| Power supply, United Kingdom | 4010450 |
| Tungsten (W) emitter points (1) | 4370760 |
| Kit, tungsten emitter points (4) with extractor tool | 5051288 |
| Kit, daisy-chain jumper cable | 5051310 |
| Kit, nitrogen | 5051513 |
