Aerostat XC2 Extended Coverage Benchtop Ionizer
$1,368.40
Simco-Ion’s Aerostat® XC2 Extended Coverage Benchtop Ionizer provides wide-area ionization for reliable, long-term static control in electronics, semiconductor, flat-panel display, and medical assembly applications. It delivers outstanding coverage for larger work areas with <12 second discharge times at 6 ft (1.8 m) from the face of the blower, and typical discharge of 1.0 second at 12 in (30.5 cm) (1000V to 100V, fan high).
Features
- Large, near-symmetric ionization area coverage
- Built-in emitter point cleaner for easy maintenance
- 0 ±10V self-balancing MicroPulse Technology
- Local alarm LEDs, Facility Monitoring System (FMS) connection, and optional audible alarm
- Adjustable locking stand and fan speed control
- Optional integrated heater for warm airflow
- Cleanroom class: ISO 14644-1 Class 6 (heater off)
Benefits

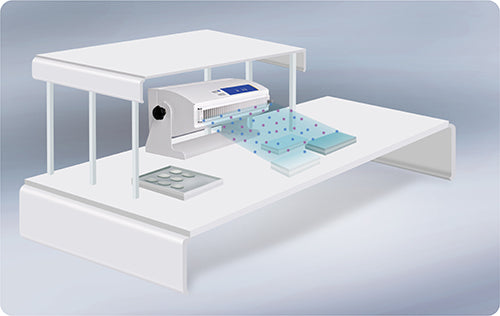

- Designed for complete static neutralization across the entire work surface area
- Light enough to be easily mounted on or above the work surface
- Ensures consistent, balanced performance over long periods
- Ionization status can be monitored locally and at a remote location (via FMS)
- User-comfort features help encourage continuous use
| Specification | Value |
|---|---|
| Input Voltage | 100-240 VAC, 50/60 Hz, 0.5A, 55W max (without heater) 100-120 VAC, 50/60 Hz, 3.5A, 420W (with heater) 220-240 VAC, 50/60 Hz, 1.9A, 460W (with heater) |
| Discharge | <1.0 sec @ 12 in (30.5 cm), 1000-100 V (fan high) |
| Balance | 0 ±10 V |
| Coverage | 36 in W x 72 in L (91.4 x 182.9 cm) Effective up to 72 in (182.9 cm) from blower face |
| Ion Emission | Micropulse (μPulse) Technology |
| Emitter | Stainless steel emitter points |
| Cleanroom Class | ISO 14644-1 Class 6 (heater off) |
| Airflow | 95 CFM (fan low) 150 CFM (fan high) |
| LED Indicators | Green: POWER Red: FAULT Red: FAN STALL |
| Controls | Power ON/OFF Fan speed: Low / Medium / High Emitter point clean button Balance adjust |
| Ozone | <0.05 ppm |
| Operating Environment | 50-95 °F (10-35 °C) 30-60% RH, non-condensing |
| Mounting | Powder-coated steel stand Skid-resistant rubber feet |
| Dimensions | 14.13 in W x 7.19 in H x 7.53 in D (35.9 x 18.3 x 19.1 cm) with stand |
| Weight | 7.0 |
| Note | Specifications, configurations, and product images are subject to change without notice. Refer to the manufacturer's documentation for current details. |
| Option | Part Number |
|---|---|
| Standard Model | 91-XC2-xx-05 |
| With Audible Alarm | 91-XC2-xx-05A |
| With Heater | 91-XC2-xx-05H |
| With Heater & Audible Alarm | 91-XC2-xx-05HA |
| Replacement Emitter Cartridge | 33-6002-01 |
| Air Filter Kit | 33-6003-01 |
| Replacement Air Filters (6-pack) | 33-6004-01 |
| Power Cord Configuration | xx = US, EU, UK, JP, CN |
