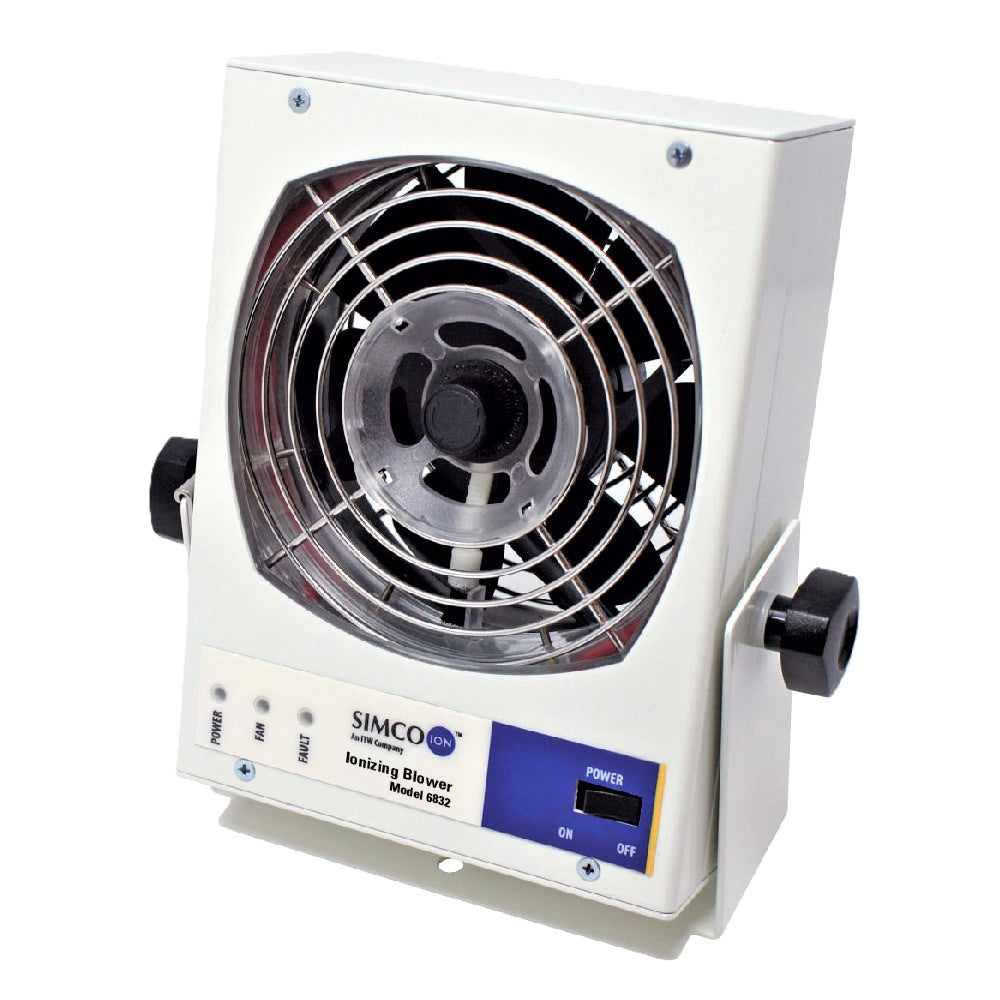

Simco-Ion 6832 Benchtop Ionizing Blower
Simco-Ion Technology Group introduces the next generation of general electronic benchtop ionizing blowers with the Model 6832. Designed to provide reliable performance and fast static charge control, the Model 6832 supports effective electrostatic management for ESD-sensitive benchtop work areas and confined mounting locations.
The Model 6832 incorporates an internal automatic balance control system that ensures ionization continues to reach the target with a high level of accuracy, helping reduce setup time and ongoing adjustment. Its compact design and small footprint allow optional mounting in space-constrained environments while delivering precisely balanced, directed ionization where it is needed.
Engineered for use in environments with controlled levels of contamination, the Model 6832 meets ISO 14644-1 Class 4 cleanliness requirements. Integrated Facility Monitoring System (FMS) connections, alarm outputs, and an optional audible alarm provide immediate indication of operating conditions. A built-in manual emitter point cleaning system supports routine maintenance and consistent long-term performance.
- Compact benchtop ionizing blower with small footprint (60 mm depth)
- Provides ±10V or better ion balance at the target
- Four fan-speed options for flexible ion delivery
- Cleanliness rated to ISO 14644-1 Class 4
- Facility Monitoring System (FMS) connections and alarms for management control
- Optional audible alarm for local fault indication
- Manual emitter point cleaning system for maintenance support
| Specification | Value |
|---|---|
| Input Voltage | 24 VDC, 470 mA max |
| Discharge | <2 sec @ 12" (30.5 cm); ±1000-100V |
| Balance | ±10V or better |
| Ion Emission | Steady-state DC Technology |
| Emitter | Titanium emitters |
| Cleanroom Class | ISO 14644-1 Class 4 |
| LED Indicator | Green POWER; Red FAN STALL; Red FAULT |
| Control | Four fan-speed settings; balance adjustment; FMS connections |
| Airflow | 125 cfm (high fan speed) |
| Audible Noise | 61 dB (high fan); 52 dB (low fan); measured 12" (30.5 cm) from fan |
| Ozone | 0.005 ppm (typical) |
| Operating Environment | 50-90°F (10-32°C); 30-60% RH, non-condensing |
| Mounting | Integrated benchtop stand |
| Enclosure | Powder-coated aluminum |
| Dimensions | 7.33"H x 6.95"W x 2.75"D (18.6 x 17.6 x 7.0 cm) |
| Weight | 1.98 lb (0.90 kg) with stand |
| Specifications, configurations, and product images are subject to change without notice. Refer to the manufacturer's documentation for current details. | |
| Option | Part Number |
|---|---|
| 6832 Benchtop Ionizing Blower, includes 24 VDC power supply | 91-6832-01 |
| 6832 Benchtop Ionizing Blower with audible alarm, includes 24 VDC power supply | 91-6832-01A |
| 6832 Benchtop Ionizing Blower, no power supply | 91-6832-NX01 |
| 6832 Benchtop Ionizing Blower with audible alarm, no power supply | 91-6832-NX01A |
| 24 VDC Power Supply, 100-240 VAC input | 14-21328 |
