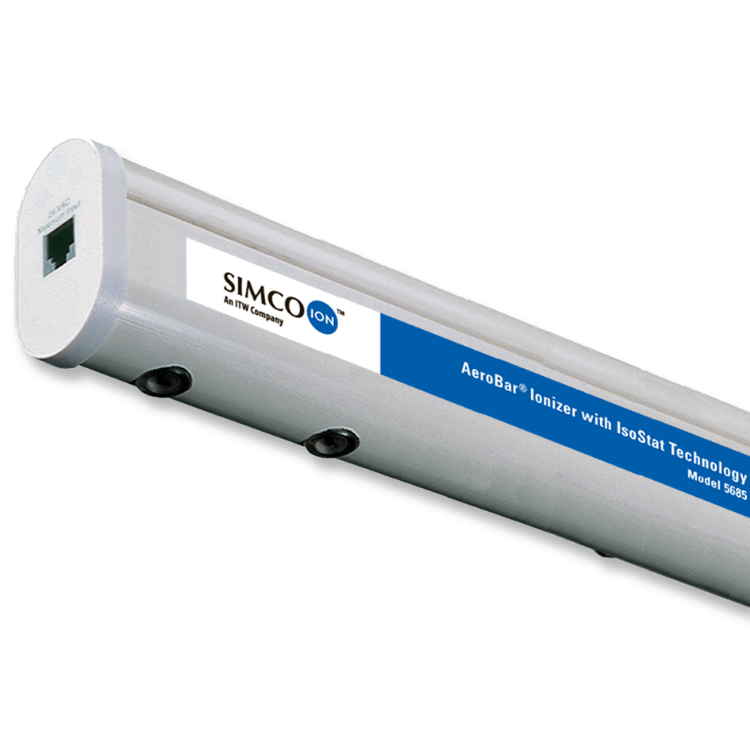

AeroBar Ionizer Model 5685
$691.00
Steady-State DC Ion Emission with Intrinsically Balanced Ionization
Simco-Ion, Technology Group's AeroBar Ionizer Model 5685 is designed to control static charge in mini-environments, laminar flow hoods, and workstations. The Model 5685 features a unique aerodynamic design that ionizes a local area without disrupting the laminar flow. Ideal in 12-24 inch distance applications with laminar air flow, the Model 5685 utilizes Steady-State DC ion emission and Simco-Ion’s IsoStat® Technology. IsoStat technology guarantees intrinsically balanced ionization. No complicated feedback circuits are required to maintain balance, and adjustment is never needed.
- IsoStat® technology
- Steady-state DC ion emission for high ion density
- Single-crystal silicon or titanium emitter points
- Multiple lengths, including short 11-inch AeroBars
| Specification | Value |
|---|---|
| Voltage Input | 24 VAC (+/-10%), 50-60 Hz, 3.5W (max) |
| Output | 7.5 kV (typ) |
| Discharge | 25 sec or less for +/-1000V to +/-100V discharge @ 24 in with min 60 fpm airflow |
| Balance | +/-50V @ 24 in (61.0 cm) measured directly below two opposite polarity emitter points (Model 5685 must be mounted at least 6 in (15.2 cm) away from grounded surfaces for optimum balance performance) |
| Ion Emission | IsoStat Technology |
| Emitter | Titanium or Single-crystal Silicon; replaceable |
| Cleanroom Class | ISO 14644-1 Class 3 |
| LED Indicator | Green POWER |
| Airflow | 60 fpm minimum required at bar for proper operation |
| Operating Env | 59-95F (15-35C), nominal; 20-60% RH, non-condensing |
| Mounting | Two mounting clips provided, various clips and hangers available |
| Dimension | 2.07"H x 1.16"W x 11.4 / 22.4 / 44.4 / 64.4"L (52.6 x 29.5 x 29.0 / 56.9 / 112.8 / 163.6 cm) |
| Warranty | Two year limited warranty |
| Weight | 0.56 lb per foot of bar length (0.256 kg per 30.5 cm) |
| Specifications, configurations, and product images are subject to change without notice. Refer to the manufacturer's documentation for current details. |
| Item | Part Number |
|---|---|
| AeroBar with titanium emitter points | 91-5685C-xxR (xx = -11, -22, -44, -64) |
| AeroBar with silicon emitter points | 91-5685U-xxR (xx = -11, -22, -44, -64) |
| Power Supply Kit, 120V/24 VAC 500 mA, US | 33-1420-01 |
| Power Supply Kit, 230V/24 VAC 500 mA, EU | 33-1430-01 |
| Power Supply Kit, 230V/24 VAC 500 mA, UK | 33-1433-01 |
